Product Description

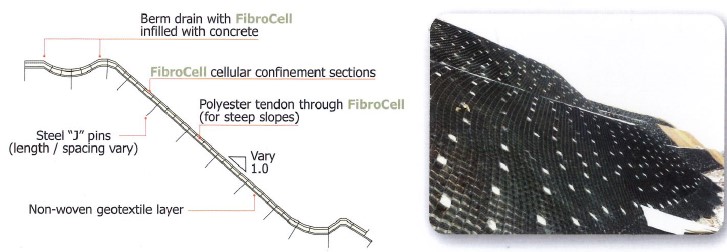

SLOPE PROTECTION
FIBROCELL provides excellent protection for slopes against erosion through its engineered. expandable, strong, high density polyethylene, honeycomb structure. It confines desired infill and resist from downward migration of material due to hydraulic flows.
FIBROCELL allows the choice of infill material based upon the demend of specific projects.
- Top soil for well establush vegetation
- Granular infill for steeper non vegetation slopes
- Concrete for hard, durable protection for severe condition
Large cell FIBROCELL is widely used for slopes with moderate inclines and low hydraulic action. The system encapsulated and protects the vegetation root zone. Large cell FIBROCELL can be installed fast with wooden or metal J-pins commonly used as anchors.
EARTH PROTECTION
FIBROCELL earth retention system is extremely durable and resistant to chemicals and water. It offers more flexible cost competitive retaining system than conventional earth retention systems.
- FIBROCELL earth retention system provides very steep near vertical surface which allows vegetation.
- When stacked with required set back FIBROCELL allows to build a stable grvity retaining wall or can be used as facing for reinforced soil walls.
- Variety of iinfill materials which can be used with FIBROCELL earth retention system includes; top soil with various selected vegetation, granular material (sand/gravel/stone), concrete
LOAD SUPPORT
FIBROCELL stabilizes base material and minimize surface rutting in poor subgrade conditions. The load support system provides semi rigid surface for roads and yards by reducing fill thickness considerably.
- FIBROCELL alloes the use of on-site poor quality granular fills inplace of costly imported material
- Produce stiff base with high flexural strength
- Revents lateral displacement of infill
- Reduce vertical deflections
- FIBROCELL reduced the thickness and weight of structural layers
- The cellular confinement system increases the number of cyclic load applications many times than that of conventional unconfined condition

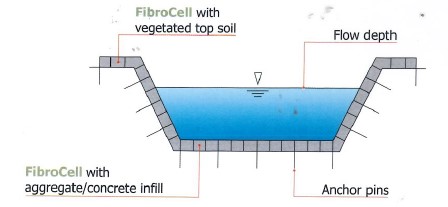

CHANNEL PROTECTION
FIBROCELL effectively imporves the hydraulic performance of conventional protection material such as concrete, gravel, vegetation and rip-rap by confinement within the cellular structure. Channel embanksmens can be protected from severe erosive conditions and continuous flow conditions using FIBROCELL channel protection system.
- Suitable for low to moderate and intermittent flow conditions with top soil as infill
- With correct infill material size this is suitable for low to moderate flow channels
- Suitable for channels that ate exposed to severe hydraulic and mechanical stresses
- Cellular confinement system eliminated complicated structural components required for conventional protection systems
- FIBROCELL provides a flexible lining which is easy to install saving time and cost

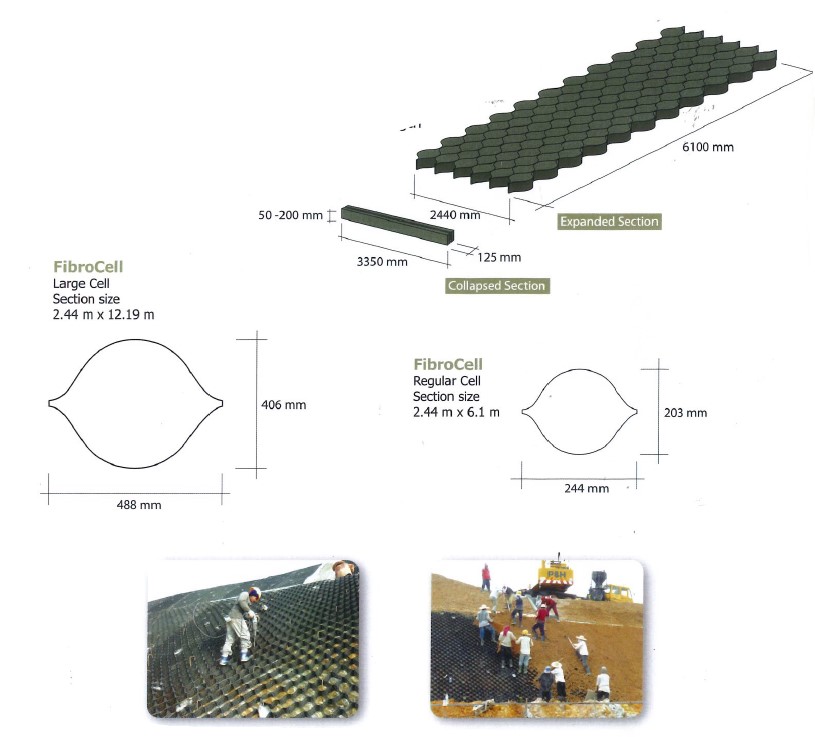

SPECIFICATION
FIBROCELL sextions are manufactured from High Density Polyethylene (HDPE) strips of the following standards
- Density 0.94 g/cm
- Sheet thickness 1.3mm
- Environmental stress crack resistance 1500 hours
- Contain Carbon Black 1.5% - 2.0% for Ultra Violet Light Stabilization
- Ultrasonic welding for maximum seam strength
