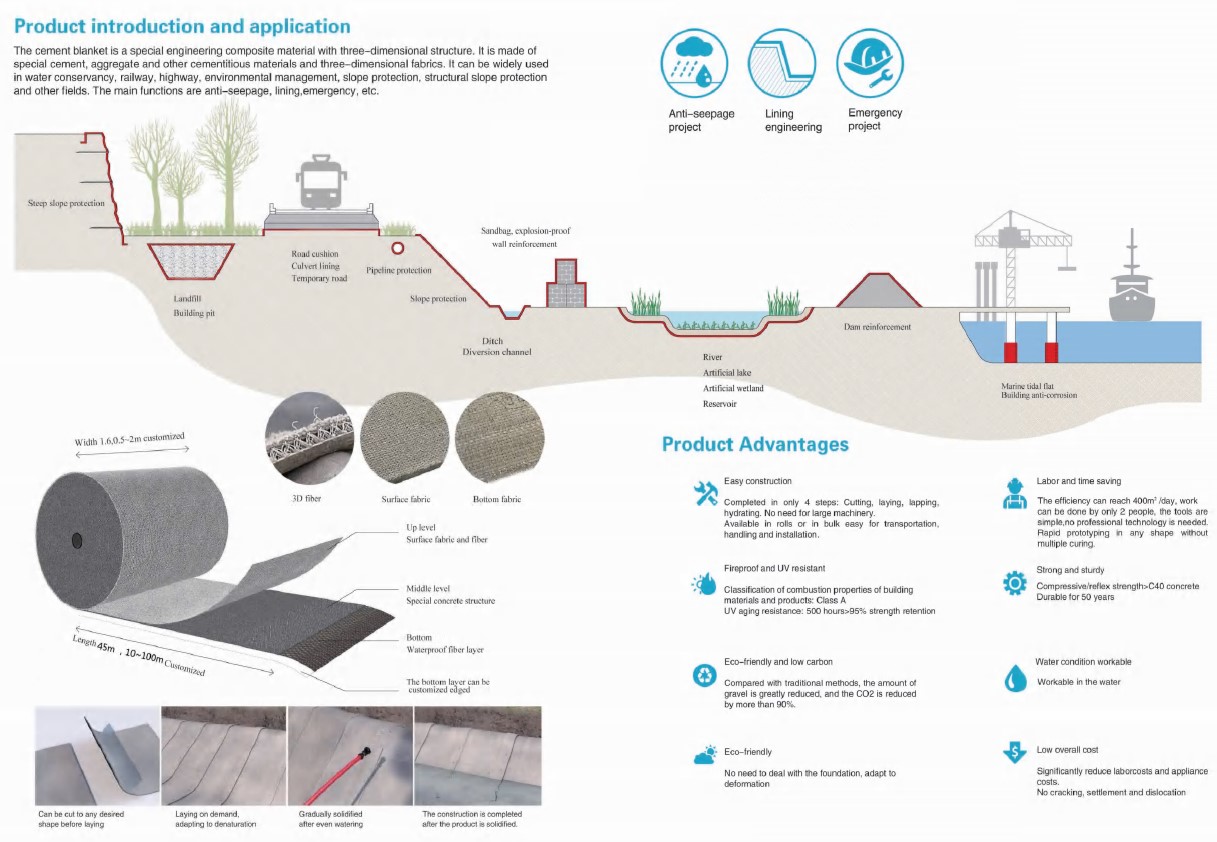

Product Description

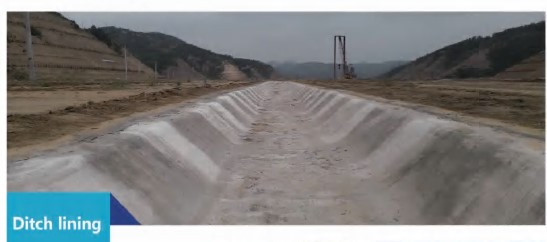

APPLICATION FOR DITCH LINING
Ecologically ditches, rain ditches mountain ditches, highway drains, temporary diversion channels sewpage ditches


ENGINEERING ADVANTAGE
The construction efficiency is 20 times that of the traditional masonry method. Ditches or slopes do not require special bedding compaction.
There is no need to mix mortar on site. Can work with warer, can work in the rain. Excellent frost resistence and weather resistance low carbon environmental protection, greatly reduce the use of sand.
Simple and fast, shorten the construction period.  After hydration, 24h can be used without repeated curing.

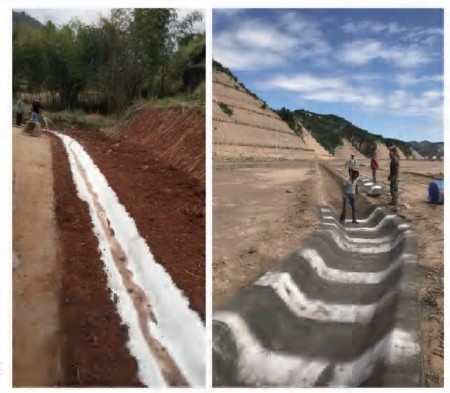

INSTALLATION METHOD

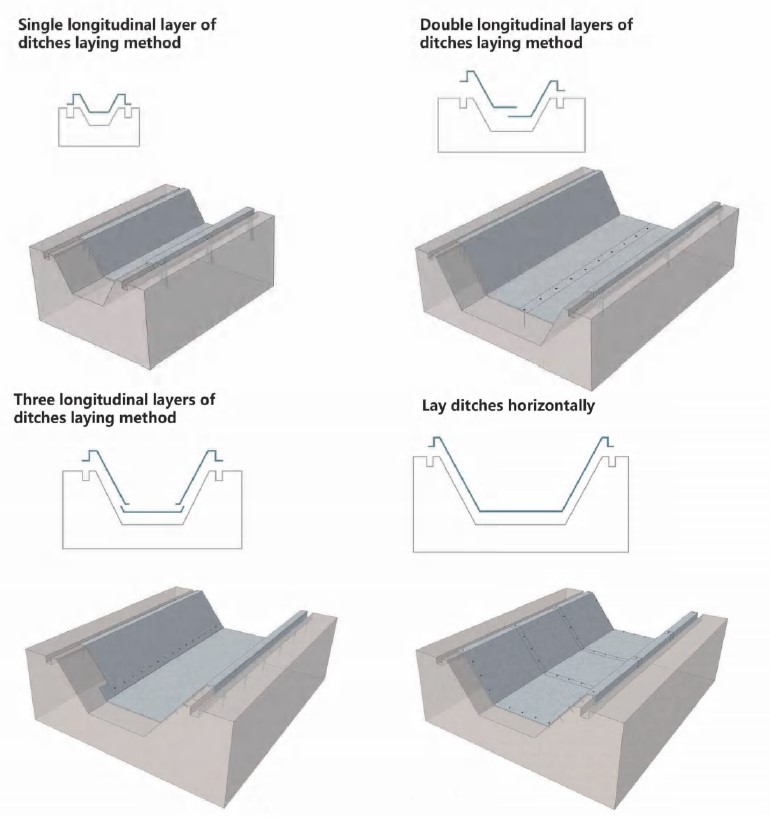

Ditch construction should take into account the design of groove, give full consideration to the width an depth of the groove, choose the appropriate lying emthod, and minimize waste. Four common laying examples are shown below.

According to the direction of water flow to determine the construction sequence, positioning overlap; Work begins downstream from the current. For blanket & blanket lap installation, usually need 10cm lap edge, press according to the need of anti-seepage requirements to choose the appropriate lap metod. For the treatment of the shore, is it necessary to dig and fill the ditch at the top of the slope and play the drill bar by adopting the metod of side part landfill and drill rod fixation. For large ditch, drill rod is required at the bottom comer of the side.

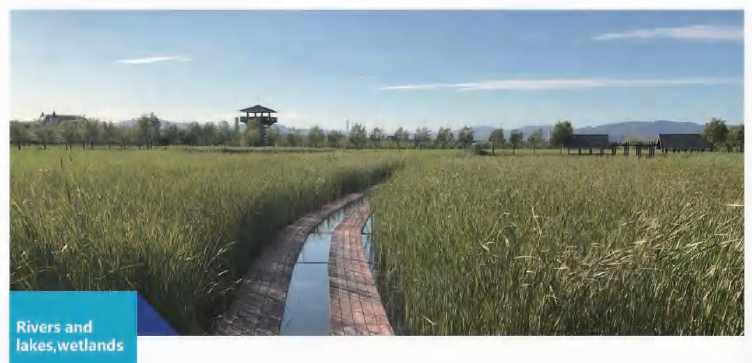

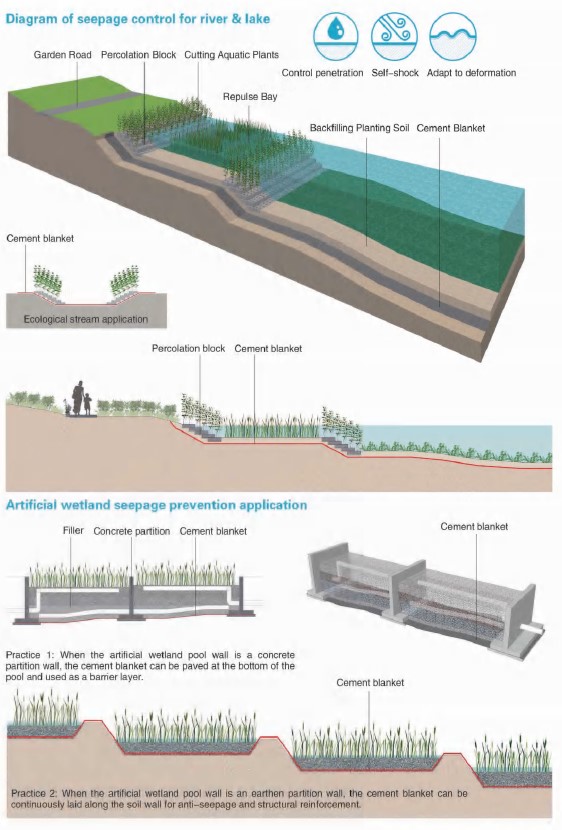

APPLICATION FOR RIVERS AND LAKES, WETLANDS
It is suitable for control penetration and protection of waterconservancy and ecological engineering. Such as rivers and lakes, water treatment, surface wetlands, constructed wetlands, landscare water surfaces, ecological ditches, etc.

ADVANTAGES
Adapt to deformation, suitable for engineering with uneven foundation and soft foundation
allowed to directly bring into the water or directly into the water, the construction is not affected by the rain
the material has large force area, high flexural strength and good integrity; effective anti-shock and anti-rain
Water erosion, flood erosion
Stretch resistance, freeze-thaw resistance; no misalignment, sedimentation, fracture

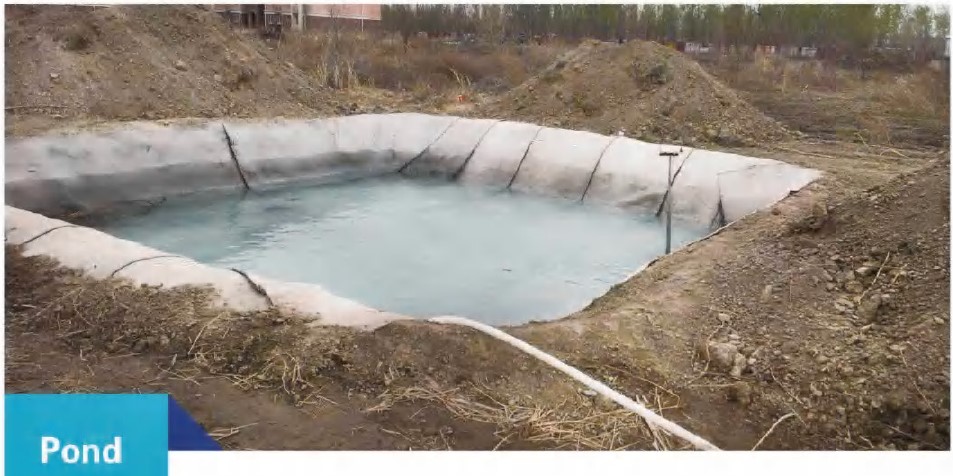

APPLICATION FOR POND

• Reservoir
• Mineral washing pool
• Property sewage reservoir
• Swirling sand sink and pumping station sink in sewage treatment plant
• Seepage prevention of fish pond and bank reinforcement, anti-erosion protection
• Mariculture, etc.

PRODUCT ADVANTAGE

• Corrosion resistance, erosion resistance,
• anti-freeze, anti-aging, anti-uv
• Use environment at PH value of 3-12, no volatile substances
• Structural strength
• Anti-seepage effect is good, using hot-melt welding, anti-seepage effect is better
• Prevent weeds from damaging the bank

METHODS

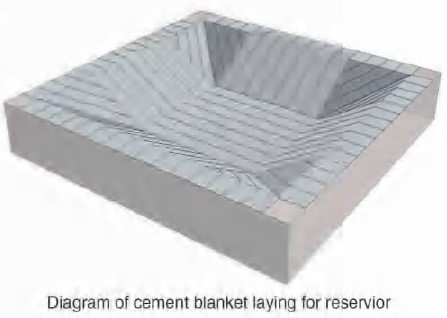

According to the size of the pind apply horizon and longitudinal combination of laying. Cement blanket had flexibility, can bend with the shape, meet bend, corner and other parts can be completely covered, can match any pond shape.

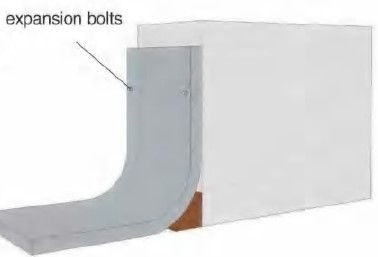

Can be applied for corrosion - resistance and scour resistant parts, anchoring to the cement blanket base level by gluing and anto-corrosion bolts, This product can work with water.
When cement blanket apply to the shore, can be directly fixed with drill rod or used the method combination of side landfill and drill rod fixed, dig & fill ditches at the joint, about 250x250mm, at least 150mm of the material shall be reserved for backfilling.
Choose corrosion resistant firmware according to specific conditions.
